F型鎖式接鏈環只可用于立環使用，由于采用了不與鏈輪接觸的立式連接，所以可以防止鏈輪由于制造誤差對接鏈環造成的
損壞，提高了接鏈環的使用壽命。F型鎖式接鏈環可以與D級鏈條配合使用。
F型鎖式接鏈環可用于連接F級鏈條， 由于采用了較低寬度的設計，在同樣大小的傳送槽中，可使用較大截面的接鏈環，從
而提高輸送能力。
F lock connectors are designed specially for joining the mining chain in weld chain link.It does not need directly engaged with the sprocket which may cause abrasion to the link .This kind of connector can be fitted with chain connector in Grade 100 and leads the longer work life .
F lock connector can be connected with the chain in F Grade .Because of its low height design and big cross-section .it can improve carrying capacity when adopted in the same kind of transmission system

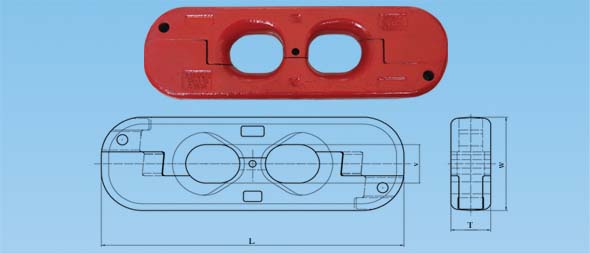

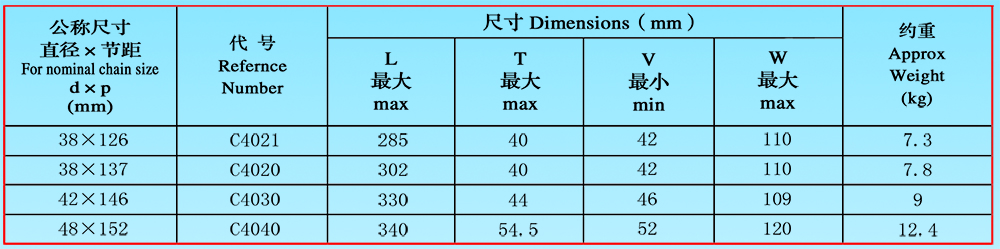

尺寸和重量
Size and weight

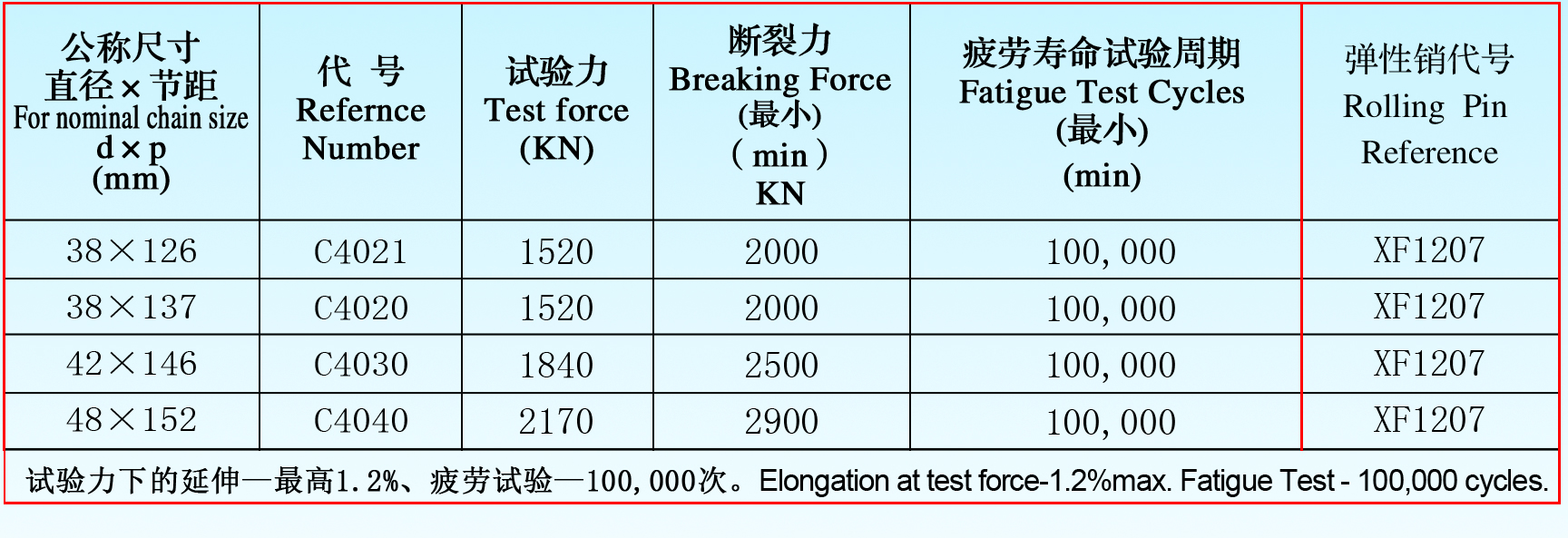

F型鎖式接鏈環機械性能表
F lock connector mechanical property
