V型鎖式接鏈環是只可用于立環使用，由于采用了不與鏈輪接觸的立式連接，所以可以防止鏈輪由于制造誤差對接鏈環造成的損壞，提高了接鏈環的使用壽命。V型鎖式接鏈環可以與D級鏈條配合使用。
V lock connectors are designed specially for joining the mining chain in vertical plane of the chain only ,without directly engaged with the sprocket which may cause abrasion. This kind of connector can be fitted with chain connector in Grade 100 and leads the longer work life

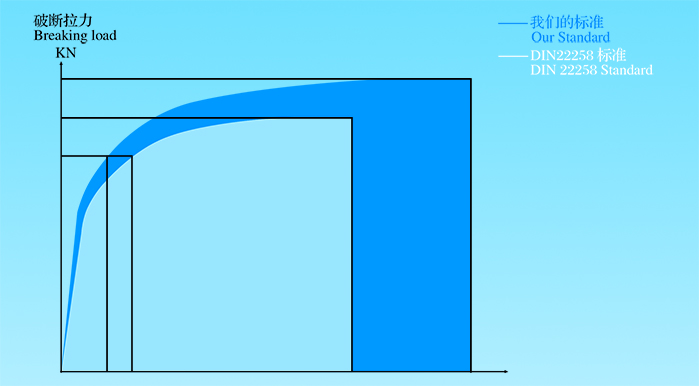

帕森斯34×126 V型鎖式接鏈環拉伸性能與DIN22258標準比較
Elongation properties’ Diagram presenting Comparative standard between ours and DIN22258
V型鎖式接鏈環機械性能表
V lock connector mechanical properties

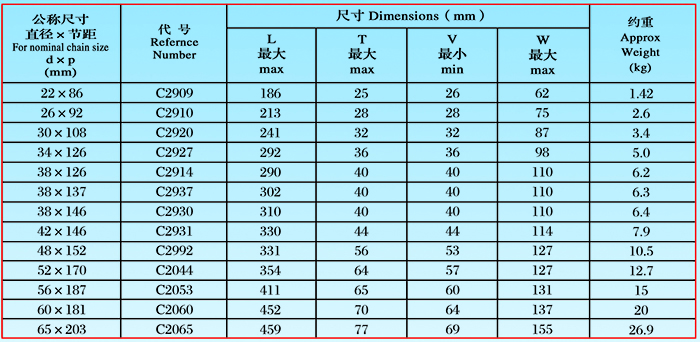

尺寸與重量
Size and weight

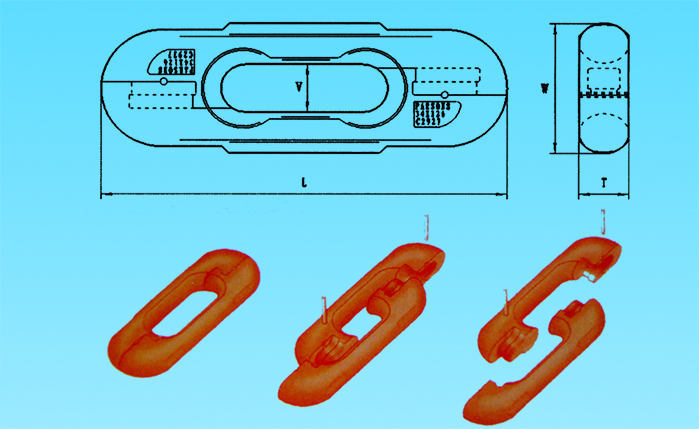

“V型鎖”接鏈環是專門為連接圓環鏈和“緊湊”鏈而設計。因?yàn)樵谥圃爝^程中選擇了富含Cr、Ni、Mo合金元素的高合金鋼原材料和多重?zé)崽幚砉に?，具有非常高的拉伸性能和疲勞壽命?nbsp;
這種接鏈環只可垂直使用，其外形大小符合DIN 22258 part 3標準要求，并經過精心設計，以確保與配套鏈輪的配合。 “V型鎖”接鏈環的重量比其它類型接鏈環較輕。V型鎖式接鏈環裝配一定要注意裝配方向，保證箭頭方向與傳動方向一致。
V lock connectors have benn designed specially for joining together Mining chains of either round like compact con-figuration .the tensile and fatigue performance is particularly impressive and has been achieved by careful selection of raw material and heat treatment during the manufacruring process.
the connectors which are for use in the vertical plane only are produced dimensionally in accordance with DIN22258 part 3 and are extremely sprocket friendly where these have been designed with this specification in mind.
V lock connectors are lighter in weidht compared with the equivalent chainlock connector .Notice the direction when link the Vlock connector with the chain .Keep the arrow in the connector align with the direction of the transmission.
