我公司生產的液壓切鏈器消化和吸收國內外先進技術，轉為切斷各種圓環鏈條的鏈環設計和制造。剪切鏈條直徑從∅22到∅48。其主要結構由液壓切斷器、手動油泵（液壓泵站）、換向增壓器和高壓油管組成，工作介質為液壓油或乳化液。按工作介質不同，可分為I型液壓切鏈器和II型液壓切鏈器。
Hydraulic chain cutter designed is manufactured by GIT was deployed to cut the chain in 22-48mm.It invloved the up to date technology home and abroad and classified into two types (Type 1 and Type 11)accroding to the work fluid .The whole set is an assembly of hydraulic chain cutter,hand oil pump (oil pump station),reversing supercharger and high pressure oil hose with the work fluid either hydraulic press oil or emulsifiec mixture.

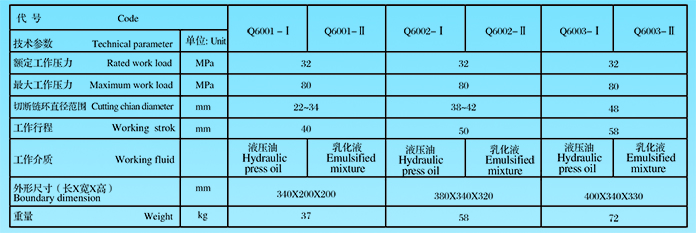

切鏈器技術參數
I型切鏈器由液壓切斷器、SYB型手動油泵和高壓管線組成。
The whole set comprise hydraulic chain cutter,SYB hand oil pump and high pressure oil hose.
主要特點：
1、切鏈器體積小，重量輕，現場安裝方便；
2、操作簡單，工作過程安全可靠；
3、降低勞動強度，提高工作效率；
4、工作介質：液壓油。
Main feature
1、Small volume ,light weight and easy installment in site.
2、Simple operation ,safe work process.
3、Reduce work intensify ,increase work efficiency.
4、Work fluid :hydraulic press oil
操作方法：
1、將液壓切斷器與油泵用高壓油管聯接好，轉動油泵換向閥手柄，使之位于加載位置，手搖油泵直到將鏈環切斷。
2、停止油泵加載并轉動手柄位于卸載位置，彈簧裝置使液壓缸回復原味，然后進行下一次動作。
Operation Instruction:
1.Connect the hydraulic chain cutter and oil pump with high pressure oil hose.Move the lever of hydraulic directional control value in the oil pump and place it in the loading position ,handle the oil pump until the chain is cut.
2.Stop loading the pump .Move the lever of hydraulic dirctional control valve back to the discharge position ,the spring device will make the hydraulic cylinder return to its original position and repeat for next operation.
注意事項：
1、使用前，需檢查刀頭固定情況，是否有算壞；
2、高壓膠管端頭和管接頭必須保持清潔，各密封件必須完好；
3、使用潤滑脂對切斷刃進行潤滑，并除去鏈環表面污物，垂直放置在切斷刃中央；
4、切記用重物敲擊刀刃外漏部分；
5、保證實際工作壓力不超過額定壓力。
1、Check if the cutting head fitted well or any broken parts appears before operation.
2、The hose socket and adaptor should be clean.The seal parts should be in good condition.
3、Grease and lubricate the cutting edge,clean off the dirt in the surface of the link ,then posite the link agasint the both end of the cutter in right angle .
4、Do not knock the edges of the cutter with heavy items.
5、Make sure the actual working pressure not excess rated pressure.
